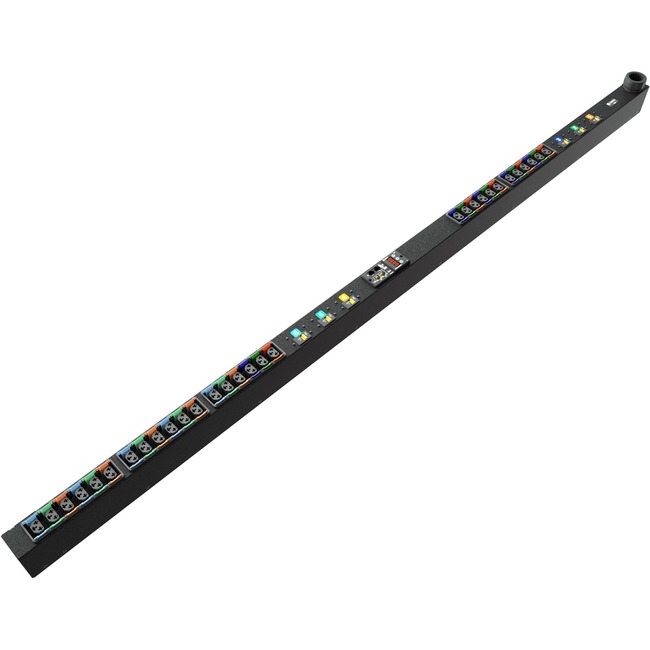

Vertiv Geist Rack PDU - Combination Outlet| C13 / C19| 60A| 208V Delta (VP46301)
Vertiv Geist Rack PDU - Combination Outlet| C13 / C19| 60A| 208V Delta (VP46301) - 30 Hybrid Outlets C13 / C19| For C14 and C20 plugs| 60A| 208V Delta| 17.2kW| 3P+E (IP44)| 0U Rack Power Distribution Unit
| $2,172.24 | Retail $2,825.00 |
- A device fitted with multiple outputs for the distribution of electric power
- Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
Manufacturer:
Vertiv
Product ID:
61398
Item:
VP46301
UPC Code:
767041031959
Our Part #
7RA920
Condition
New
$2,172.24EA
$2,825.00
$2,825.00
Availability
Only 1 Left In Stock
Product description
Vertiv Geist Rack PDU - Combination Outlet| C13 / C19| 60A| 208V Delta (VP46301) - 30 Hybrid Outlets C13 / C19| For C14 and C20 plugs| 60A| 208V Delta| 17.2kW| 3P+E (IP44)| 0U Rack Power Distribution Unit
30 Hybrid Outlets C13 / C19| For C14 and C20 plugs| 60A| 208V Delta| 17.2kW| 3P+E (IP44)| 0U Rack Power Distribution Unit
Specifications
Modem (RJ-11)
No
Mounting Orientation
Vertical
Number of Cord/Cable
1
PDU Type
Monitored
Phase
Three Phase
Plug/Connector Detail
1 x 3P+E (IP44)
Power Rating (Watt)
17.20 kW
Receptacle Detail
30 x Combination C13/C19
UPC Alternates
767041031959
Certifications & Standards
- UL & c-UL Listed 60950
- FCC Part 15 Class A Conformance
Cord Length
10 ft
Country of origin
United States
Environmental Certification
RoHS
Environmental Certification
China RoHS
Environmentally Friendly
Yes
Height
70"
Input current
60 A
Input voltage
208 V AC
Input Voltage Range
200 V AC - 240 V AC
Length
3"
Limited Warranty
5 Year
Management
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
Manufacturer
VERTIV
Manufacturer Part Number
VP46301
Manufacturer Website Address
http://www.vertiv.com/
Marketing Information
The Vertiv Geist NI30677 rPDU is a versatile rack power distribution unit featuring 30 Combination C13/C19 Outlets. The NI30677 is a 60A 208V three phase DELTA upgradeable rack PDU with a 3P+E (IP44) splash proof plug. The NI30677 provides unit level remote power monitoring and environmental monitoring capabilities with the addition of optional environmental sensors. Remotely monitor and manage the rPDU through any web browser or via serial communication. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord and are also P-Lock compatible. The hot-swappable IMD provides peace of mind that as business needs change the technology can easily be updated.
Mount Type
Rack-mountable
Mount Type
Cabinet-mountable
Output voltage
240 V AC
Plug/Connector Type
3P+E (IP44)
Product color
Black
Product Name
GU NI30677 PDU
Product Series
N
Product Type
PDU
Protection Type
Overcurrent Protection
Rack Height
0U
Receptacle Type
Combination C13/C19
Weight (Approximate)
32 lb
Width
2.1"
